LSM6DSRXTR Motion Sensor: STM LSM6DSRXTR, Datasheet, Application Hint

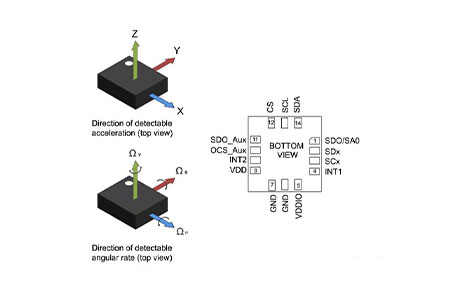

LSM6DSRXTR Pinout

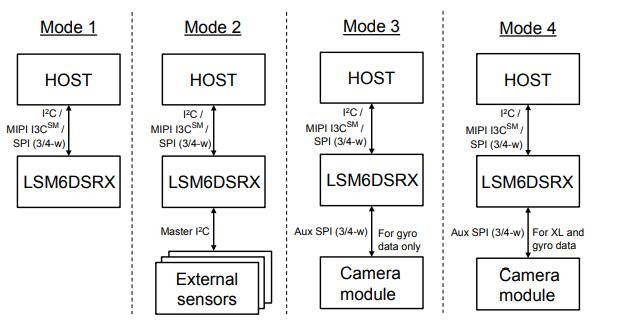

LSM6DSRXTR Connection Mode

Symbol

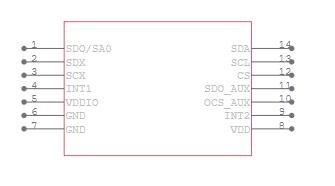

LSM6DSRXTR Symbol

Footprint

LSM6DSRXTR Footprint

3D Model

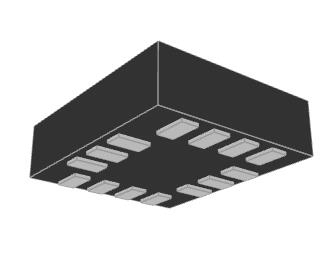

LSM6DSRXTR 3D Model

The LSM6DSRXTR is a system-in-package that includes a 3D digital accelerometer and a 3D digital gyroscope with an expanded full-scale range, up to 4000 DPS, and exceptional temperature and time stability.
The LSM6DSRXTR meets the majority of OS needs by providing real, virtual, and batch sensors with 9 kbytes of storage and  FIFO  compression up to three times for dynamic data batching.

• iNEMO inertial module with embedded machine learning core

• The extended full-scale range for gyroscope up to 4000dps

• High stability over temperature and time

• Smart FIFO up to 9KB, Android  compliant

• Auxiliary SPI  for OIS data output for gyroscope and accelerometer

• ±2/±4/±8/±16g full scale, ±125/±250/±500/±1000/±2000/±4000dps full scale

• SPI/I²C & MIPI I3CSM serial interface with main processor data synchronization

• Supports sensor synchronization S4S for Qualcomm, full spec compliant (I²C, MIPI I3CSM, SPI  )

• Advanced pedometer, step detector and step counter, significant motion detection and tilt detection

• Programmable finite state machine to process data from accelerometer, gyroscope and external sensors

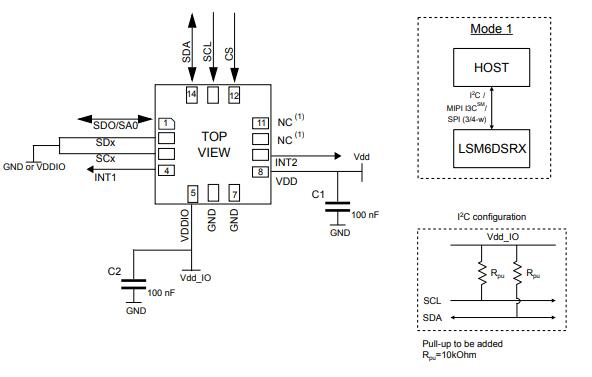

LSM6DSRXTR electrical connections in Mode 1

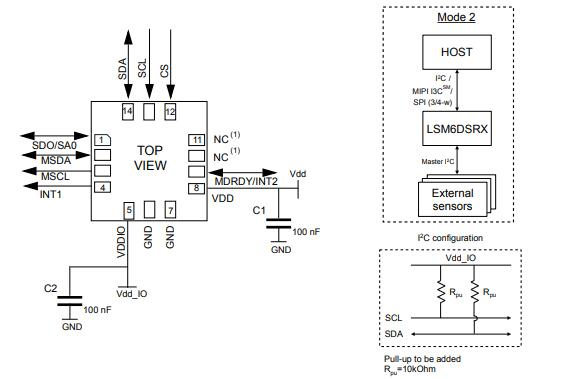

LSM6DSRXTR electrical connections in Mode 2

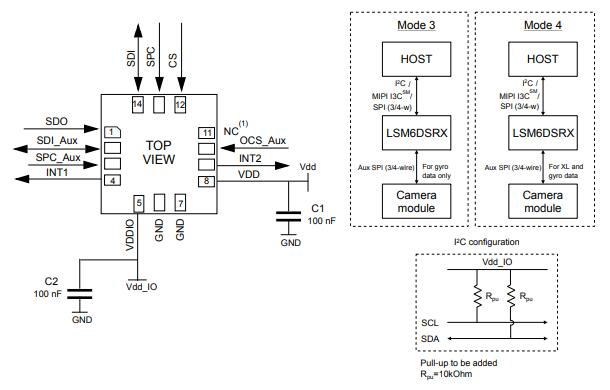

LSM6DSRX electrical connections in Mode 3 and Mode 4 (auxiliary 3 4-wire SPI)

The following figure shows the block diagram of LSM6DSRXTR

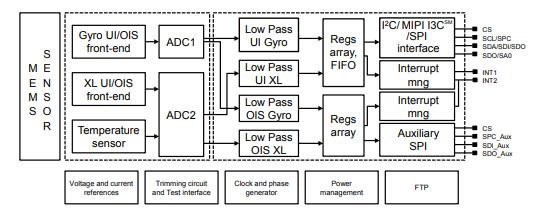

LSM6DSRXTR Block Diagram(Block diagram of filters)

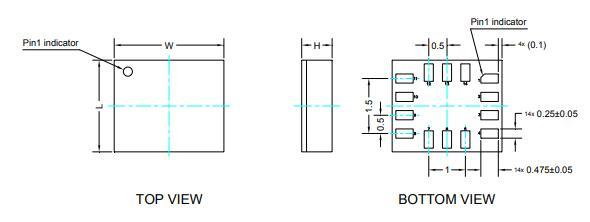

LSM6DSRXTR Package
